ASTON 10,000LBS 2 POST CAR LIFT TWO POST AUTO LIFT SINGLE POINT LOCK RELEASE
Sale!69%
Original price was: $3,570.00.$1,090.00Current price is: $1,090.00.
4 in stock

This item: ASTON 10,000LBS 2 POST CAR LIFT TWO POST AUTO LIFT SINGLE POINT LOCK RELEASE
4 in stock
Original price was: $3,570.00.$1,090.00Current price is: $1,090.00.
Original price was: $3,570.00.$1,090.00Current price is: $1,090.00.
Original price was: $8,999.00.$2,890.00Current price is: $2,890.00.
Original price was: $5,999.00.$2,599.00Current price is: $2,599.00.
Original price was: $7,285.05.$2,985.51Current price is: $2,985.51.
1 × APLUSLIFT HW-10KBP-A 10000 LB 2-POST FLOOR PLATE HEAVY DUTY CAR LIFT WITH 3 YEAR WARRANTY
3 in stock
Original price was: $2,390.00.$1,199.00Current price is: $1,199.00.
Guaranteed safe & secure checkout
Ordered: 0
Items available: 4
10-21 DAY DELIVERY
Dec 15 Dec 22
Description
Reviews (0)
DESCRIPTION

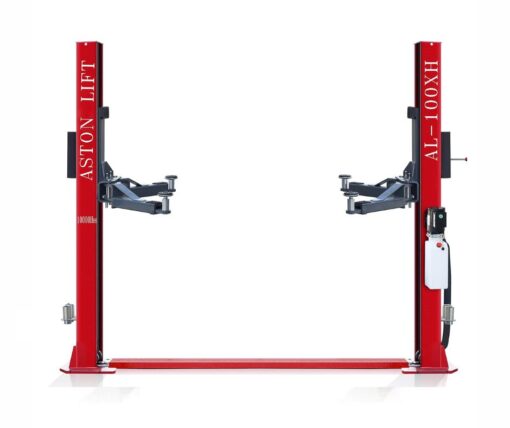

Aston® Heavy Duty 10,000 lbs 2 post auto lift Base Plate
| Model | AL-100XH |
| Capacity | 10000 lbs. |
| Max Lift Height | 72“ (1830mm) |
| Minimum Pad Height | 4.33“ (110MM) |
| Overall Height | 111“ (2800mm) |
| Overall Width | 135“ (3430mm) |
| Width Between Columns | 107“ (2700mm) |
| Drive thru Clearance | 104“ (2650mm) |
| Lifting Time | 45-60s (Adjustable) |
| Lowering Time | 30s (Adjustable) |
| Motor Power | 2.2kw |
| Voltage | 220V, 1ph |
| Noise | <70db |
| Net Weight | 1650lbs. (749kg) |
| Gross Weight | 1694 lbs. (769kg) |
| Lift Packing size | 111″x18″x30″ (2820x450x750mm) |
| Pump Packing size | 36″x12″x14″ (900x300x350mm) |
Features 220V 60HZ 1PH 3HP MOTOR
Safety Mechanism:
- Single Point Safety Lock Release
- Automatic arm lock restraints
- Relief valve built in power pump to prevent overloading
- Door guards protection rubber
- Heavy duty 5/16″ diameter cable and 4.56″ pulley reduce high stress on synchronization process and increase cable life
- Stiffened base plate 5/8″ thickness
- Ultra high molecular self lubricating nylon slider ensures carriage smooth moving up and down
- Anchor bolts/mounting hardware included.
